A restaurant kitchen floor plan is a map of movement, not a lineup of stainless-steel equipment. Food should move from receiving to storage, preparation, cooking, plating, and service without running into the route used by waste and dirty dishes. For many full-service concepts, the kitchen and related back-of-house functions occupy roughly 30-40% of the total restaurant area, but menu and volume matter more than a fixed ratio. Start with tickets, staff, and food flow, then compare assembly-line, zone, and island arrangements.
Generate a restaurant kitchen floor planFloor plan generator
Create an editable floor plan
Free: 5 successful AI generations/hour, 5/day · No login · Failed or fallback generations don't count · Free PNG includes a watermark
Example prompts
Result preview
Your editable floor plan layout will appear here.
What makes a good restaurant kitchen floor plan?
Good kitchens make the normal shift shorter and the difficult shift safer. Trace one delivery from the back door, one plate from prep to the guest, and one dirty pan back to washing. If those paths cross repeatedly, adding more equipment will not solve the layout. The plan should also leave service aisles, landing surfaces, ventilation, utilities, cleaning access, and handwashing visible rather than pretending they will fit later.
Protect clean food flow
Receiving, prep, cooking, plating, and pickup should read as one forward path; dirty wares and waste need a separate return path.
Plan required support early
Hand sinks, storage, refrigeration, landing space, janitorial needs, and staff circulation are operational infrastructure, not leftover space.
Use the restaurant floor plan generator when you need to balance the kitchen against dining, bar, and guest circulation. For a smaller counter-led operation, compare the coffee shop floor plan generator.
How to generate a restaurant kitchen floor plan with AI
Describe menu and volume
Enter total kitchen area, service style, covers per service, menu stations, staff count, delivery point, storage, major equipment, and any fixed utilities.
Review both directions
Trace ingredients toward service, then trace dirty dishes and waste backward. Check that neither route blocks plating, handwashing, or a main aisle.
Edit and validate
Move zones, test equipment footprints and clearances, export the concept, and review it with the chef, kitchen designer, health authority, fire reviewer, and trades.
Try this prompt: “a 650 sqft full-service restaurant kitchen with rear receiving, dry and cold storage, separate vegetable and raw protein prep, a six-station hot line, central plating pass, accessible hand sinks, and a dish pit with its own return route.”
Example restaurant kitchen layouts
These examples scale from a compact café kitchen to a high-volume production plan. The smallest version depends on a limited menu and disciplined storage. The middle version supports independent prep, cooking, plating, and washing. The large plan adds receiving and production capacity, but it should not make staff walk farther just because more space is available. In every size, compare the drawing with a realistic delivery, a peak service ticket, and the closing washdown routine; each test exposes a different weak point.

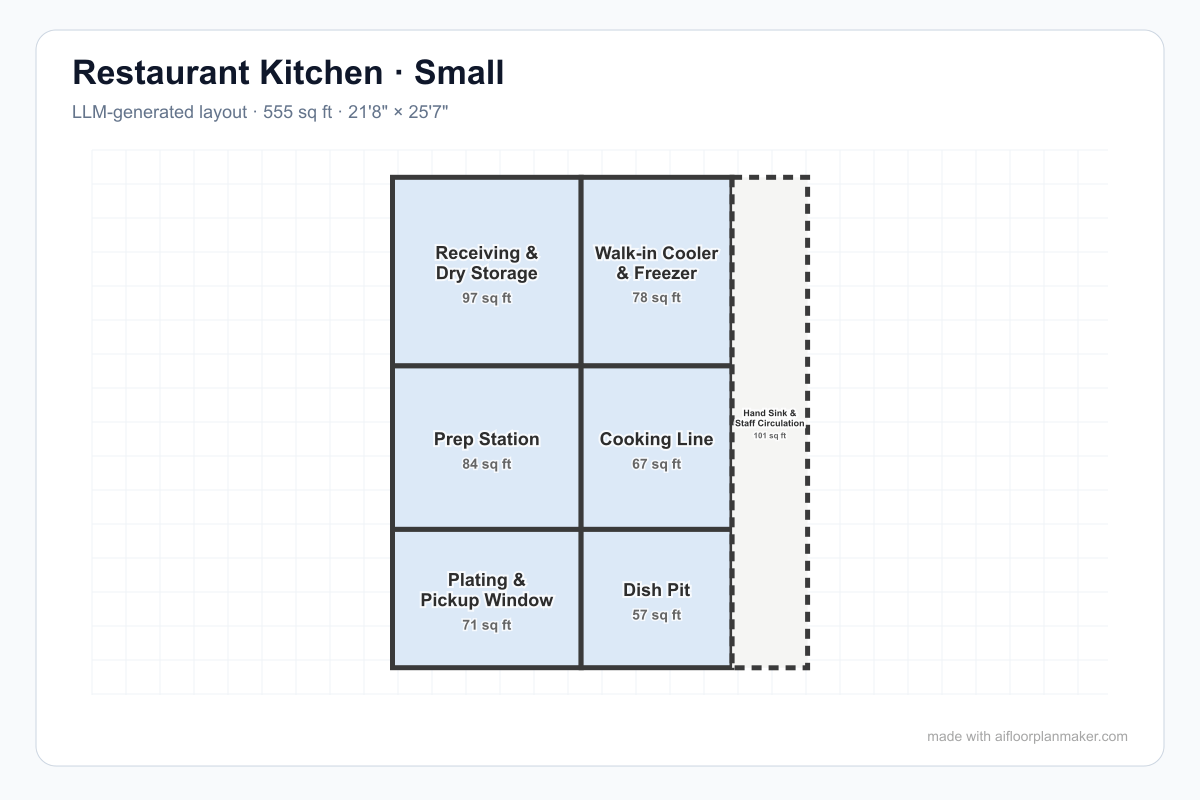

554 sq ft — compact restaurant kitchen
A compact workflow connects receiving and storage to prep, cooking, pickup, dishwashing, handwashing, and staff circulation without mixing every task.
Source: saved restaurant-kitchen floor-plan JSON exported by the current production renderer.

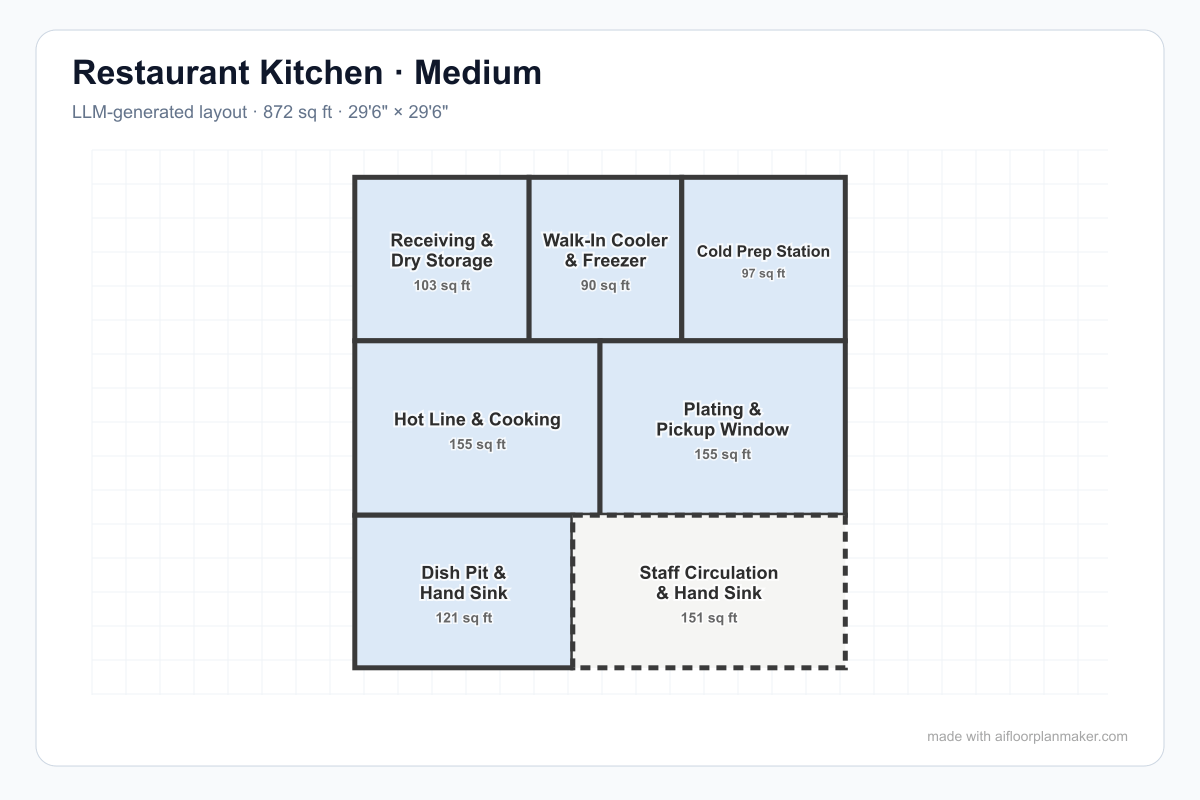

872 sq ft — full-service kitchen
Dedicated cold prep and hot-line zones connect to storage and pickup while dishwashing, hand sinks, and staff circulation remain clearly identified.
Source: saved restaurant-kitchen floor-plan JSON exported by the current production renderer.

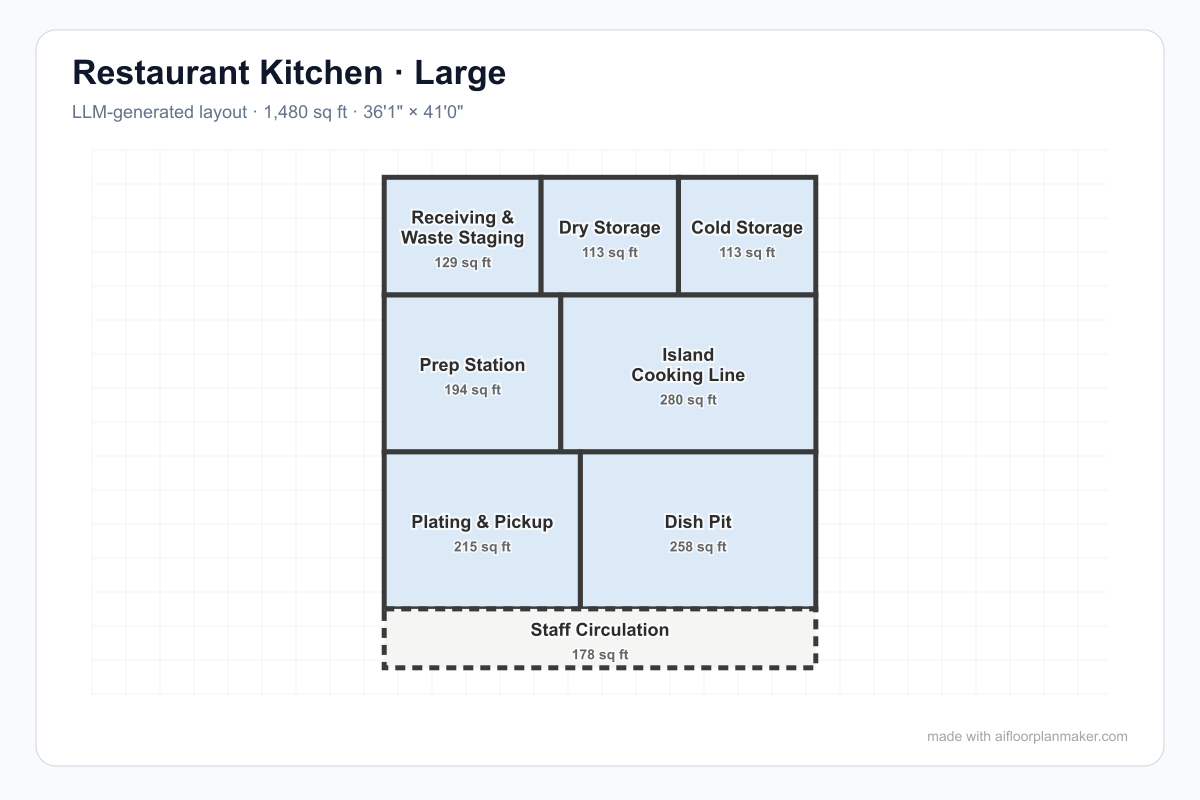

1,480 sq ft — high-volume island kitchen
A larger island plan separates receiving and waste, dry and cold storage, preparation, cooking, plating, dishwashing, and staff circulation.
Source: saved restaurant-kitchen floor-plan JSON exported by the current production renderer.
Restaurant kitchen space planning reference
Use these figures to test an early program, not to approve a final kitchen. Menu, service volume, equipment, adopted food code, fire protection, utilities, and local accessibility rules control the finished plan.
| Zone or check | Early reference | What to verify |
|---|---|---|
| Front-of-house / back-of-house split | About 60% dining and 40% kitchen/support is a common full-service starting point. | Quick-service, delivery-heavy, bakery, and production-led concepts may need much more back-of-house area. |
| Cooking and preparation | Size the hot line, cold prep, raw prep, landing surfaces, and ventilation from the actual menu and equipment list. | Keep raw work from crossing ready-to-eat preparation and protect the forward food route to plating. |
| Warewashing and dirty return | Reserve a separate return path through scraping, washing, drying, and clean storage. | Dirty dishes and waste should not cross the plating pass or clean-food route. |
| Storage and receiving | Program dry, refrigerated, and frozen storage from delivery frequency and par levels rather than a fixed percentage. | Test the route from receiving to storage without crossing guest traffic or active plating. |
| Accessible circulation | 36 in minimum clear route; 60 in turning space where required by the adopted accessibility standard. | Increase widths for two-way staff movement, carts, door swings, hot equipment, and emergency egress. |
| Handwashing | Locate sinks for convenient use in food-prep, dispensing, and warewashing areas. | Keep every approach unobstructed and confirm quantity and plumbing with the local health authority. |
Planning sources: Toast restaurant space guide, the WBDG food-service program, the FDA Food Code, and the U.S. Access Board route guide. These are programming references; they do not replace professional review or the codes adopted for the project location.
Compare related layouts for a complete restaurant, a production-led bakery, a counter-focused coffee shop, or a beverage-led bar. Use the standard room size guide to compare common circulation and support-space assumptions.
Key zones every restaurant kitchen needs
Receiving and storage
The back door, checking space, dry storage, refrigeration, and freezer should form a short first link in the food route. Deliveries should not cut through guest seating or active plating.
Preparation
Prep needs washable surfaces, ingredient access, tools, and enough separation for the menu. Raw-protein work should not force staff or products through ready-to-eat preparation areas.
Cooking line
Group hot equipment around the actual ticket sequence and ventilation strategy. Staff should be able to turn between preparation, heat, landing space, and plating without colliding with a main aisle.
Plating and pickup
The pass is the bridge between production and service. Give it clear sight lines, landing space, heat control, and a direct route to the dining room without opening the dirty-dish lane.
Dish pit and waste
Used wares need a return path to scraping, washing, drying, and clean storage. Keeping this route away from plating is one of the most important clean-versus-dirty decisions in the plan.
Handwashing and staff support
Hand sinks must be conveniently accessible where work happens. Lockers, a staff corner, janitorial storage, and waste holding also need real footprints instead of being left for the last spare corner.
Common restaurant kitchen layout mistakes
Forcing every kitchen below 30%
A simple beverage counter and a scratch-cooking restaurant do not need the same back-of-house share. Shrinking the kitchen without simplifying the menu usually creates congestion and missing storage.
Crossing clean and dirty routes
If bus tubs, waste, and used dishes cross the plating path, the problem is structural. Move the dish return or pass before polishing equipment positions.
Choosing equipment before workflow
A list of appliances is not a plan. Map receiving, storage, prep, cooking, plating, service, and washing first, then fit equipment to the sequence and required clearances.
Hiding the hand sink
A sink behind stored boxes or across a crowded production line is not conveniently accessible. Reserve its location early and verify local health requirements before finalizing utilities.
Restaurant kitchen floor plan FAQ
How much of a restaurant should the kitchen occupy?
A practical early planning range is about 30-40% of the total restaurant area for the kitchen and related back-of-house functions. The right share changes with menu complexity, delivery volume, storage frequency, table count, and whether baking, prep, or dishwashing happens on site.
Which restaurant kitchen layout works best?
An assembly-line layout suits a narrow, repeatable menu; a zone layout separates prep, hot line, baking, salad, and dishwashing; an island layout puts a shared production block in the center. The best choice follows the menu, staffing pattern, equipment, and service sequence rather than a generic template.
Where should the handwashing sink go?
Put handwashing sinks where staff can reach them conveniently from food preparation, service, and warewashing work without crossing unsafe routes. They must remain accessible and should not be treated as prep or utensil sinks. Exact numbers and locations must be confirmed with the local health authority.
Does the generator account for food-safety rules?
The generator can reserve logical zones for handwashing, clean storage, raw preparation, cooking, plating, waste, and dirty-dish return. It is not a health-department approval tool. Food codes are adopted and amended locally, so a qualified kitchen designer and local officials must review the final equipment and plumbing plan.
Is the generated restaurant kitchen plan ready for construction?
No. It is a concept layout for comparing workflows and space allocation. Before construction, verify field dimensions, structure, ventilation, fire suppression, grease handling, utilities, drainage, accessibility, equipment clearances, health rules, and permits with licensed professionals and local authorities.
How wide should restaurant kitchen circulation be?
Use the 36-inch minimum accessible-route width as a compliance baseline where an accessible route is required, and test 60-inch turning spaces where the route or equipment approach needs them. Working aisles often need more room for two-way staff traffic, hot equipment, open doors, carts, and local fire or health rules, so verify the final width around the actual equipment schedule.
Can I edit and download the restaurant kitchen layout?
Yes. Generate the first layout, move walls and doors, review the 3D preview, and download a PNG for planning conversations. The editable output is a concept study; a kitchen designer and the responsible authorities must still validate equipment, utilities, ventilation, accessibility, food safety, and construction details.
Turn the menu into a workable kitchen route
Start with receiving, storage, prep, cooking, plating, washing, and handwashing, then edit the generated geometry around your equipment and service model.
