Drawing a floor plan is not mainly about making straight lines. It is about turning a real or imagined space into a reliable map of walls, openings, rooms, dimensions, and movement. A good plan lets another person understand the layout without standing in the building. It shows what connects, what is separated, and whether people and essential objects can fit comfortably.
You can draw a useful first plan with graph paper, a pencil, a tape measure, and a ruler. Digital tools make alternatives and revisions faster, but the thinking process is the same: start with trustworthy information, work from the outside inward, and check every major decision before adding detail. This guide covers both methods and shows how to move from a rough field sketch to a clean, editable layout.
What You Need Before You Start
For a measured plan, gather a tape measure or laser measure, graph paper, a hard pencil, an eraser, a ruler, and a phone camera. A clipboard helps on site. A second person makes long measurements easier and reduces transcription errors. For a proposed plan, begin with a room list, approximate total area, preferred adjacencies, and the number of people the layout must serve.
Create a simple measurement key before recording numbers. Label corners A, B, C, and D; number doors and windows; and write all values in one unit system. Add notes such as “dimension to finished wall” or “opening width” so that the numbers still make sense when you redraw them later. If part of the building is inaccessible, mark it as unverified rather than estimating it silently.
Try an Editable Digital Starting Point
Describe the space below to generate a real editable layout. The rooms are geometry rather than a flat picture: you can drag walls, watch dimensions update, and export the revised plan. The preset creates a three-bedroom starting point, but you can replace it with your own brief.
Floor plan generator
Create an editable floor plan
Free: 5 successful AI generations/hour, 5/day · No login · Failed or fallback generations don't count · Free PNG includes a watermark
Example prompts
Result preview
Your editable floor plan layout will appear here.
1. Decide What the Plan Is For
The level of detail depends on the job. A homeowner comparing remodel ideas may only need room boundaries, doors, windows, approximate dimensions, and circulation. A real-estate plan emphasizes clarity and recognizable room names. A permit or construction set needs much more: verified dimensions, structure, assemblies, levels, materials, code notes, and review by qualified professionals.
Write a one-sentence purpose before drawing. Also note the floor, the units, the date measured, and whether the plan represents existing conditions or a proposed layout. This prevents an early concept from being mistaken for a construction document. If several people will review the plan, agree on priorities first. “Fit three bedrooms” is less useful than “fit three bedrooms, keep the kitchen near the garden, and separate the primary bedroom from the living area.”
A room program is a short list of spaces and relationships. For a small home it might include an entry, living room, kitchen, dining area, three bedrooms, two bathrooms, laundry, and storage. Add relationship notes such as “kitchen beside dining” or “guest bathroom accessible without entering a bedroom.” Programs keep attractive sketches from omitting ordinary but necessary spaces.
2. Measure the Outer Boundary
For an existing room or building, begin with the overall footprint. Measure each exterior wall from corner to corner. If the footprint steps inward or outward, record every segment in sequence instead of estimating the total shape from memory. Write each measurement directly beside the corresponding line on a rough sketch.
Choose one unit system and keep it consistent. Record feet and inches carefully, or use meters and millimeters throughout. Take diagonal measurements when a room may not be square. Two walls can have the expected lengths while an angled corner quietly changes the whole geometry.
Photograph each wall and number the photos to match your notes. A simple field sketch with dimension arrows is often more valuable than a neat drawing made from uncertain measurements. Include columns, shafts, steps, ceiling changes, fireplaces, and other fixed conditions that could affect the layout.
Use a repeatable clockwise sequence so missing dimensions are obvious before you leave the site. Measure all wall segments, then openings, then one or more diagonals. If a nominal 12-by-14-foot room has diagonals that differ by 4 inches, do not force it into a perfect rectangle. Mark the irregularity and verify the corners. Across a larger property, take one or two overall dimensions through several rooms as checks against the smaller measurements.
Avoid relying only on chained dimensions. Six small measurements can each be slightly wrong while their combined error is large. Record both the individual segments and an overall dimension wherever practical. The comparison exposes mistakes while you can still remeasure them.
3. Choose a Scale
A drawing scale converts real dimensions to a manageable page. On graph paper, one square might represent 6 inches, 1 foot, or 0.25 meters. Common drafting scales include 1:50 and 1:100 in metric work, or 1/4 inch equals 1 foot in imperial work. The right choice depends on the building size, paper size, and amount of annotation.
Pick a scale that fits the complete footprint while leaving room for dimensions and notes. Do not change scale halfway through. Write the scale on the sheet. If the plan is digital, the software usually stores real dimensions and handles zooming, but the intended print scale still matters when somebody prints or measures the drawing.
Test the longest wall before drawing every room. A 48-foot building at 1/4 inch per foot needs 12 inches of paper before margins or dimension strings. Discovering that conflict early is much easier than redrawing a finished plan. If the building will not fit, choose a smaller scale or larger sheet rather than squeezing the last rooms.
Graph paper makes manual scaling simple. At one square per foot, a 10-by-12-foot room becomes a 10-by-12-square rectangle. At one square per 0.25 meter, a 3-by-4-meter room becomes 12 by 16 squares. Count twice before drawing permanent lines, and use light construction marks until the full footprint closes correctly.
4. Draw Exterior and Interior Walls
Draw the outside walls first. Confirm that the total width, depth, steps, and diagonals agree with your field notes. Then locate interior partitions by measuring from known exterior corners or other fixed references. Avoid building the entire plan from a chain of small interior measurements because errors accumulate.
Represent walls with two lines or a clear filled thickness rather than a single centerline. Exterior walls are often thicker than interior partitions. At concept stage, the exact construction may be unknown, but consistent wall thickness makes the plan easier to read and prevents spaces from appearing larger than they are.
Distinguish the face of finish from the wall centerline. A field measurement normally runs between finished surfaces, while structural or consultant drawings may use different references. If your exterior dimensions and room dimensions do not close, wall thickness or reference points are often the reason. Do not hide the mismatch by stretching the last room.
Draw long continuous walls before short partitions. This establishes alignment and makes accidental gaps easier to find. Where walls meet, zoom in or inspect the junction on paper. Tiny breaks can prevent digital software from recognizing a closed room and calculating its area.
5. Add Doors, Windows, and Fixed Elements
Mark each door opening and show its swing with an arc. The arc reveals conflicts with cabinets, toilets, other doors, or circulation. Sliding and pocket doors use different symbols, so identify them accurately. Record opening width and position from a known corner. If a door changes the usable wall length, that matters as much as the opening itself.
Place windows by measuring from a nearby corner to the opening, then record the opening width. For remodel planning, note sill height when it affects counters, furniture, or privacy. Add stairs, columns, fireplaces, plumbing fixtures, built-in cabinets, kitchen counters, and other fixed elements before loose furniture.
Stairs need special care because a plan shows only a horizontal slice. Mark the direction of travel and compare the levels above and below. A stair may fit on one floor but conflict with a doorway, headroom, or circulation on another. For a technical project, coordinate it with sections and professional review.
If symbols are unfamiliar, use the printable floor plan symbols cheat sheet to identify walls, openings, fixtures, electrical marks, and reference symbols before finalizing the drawing.

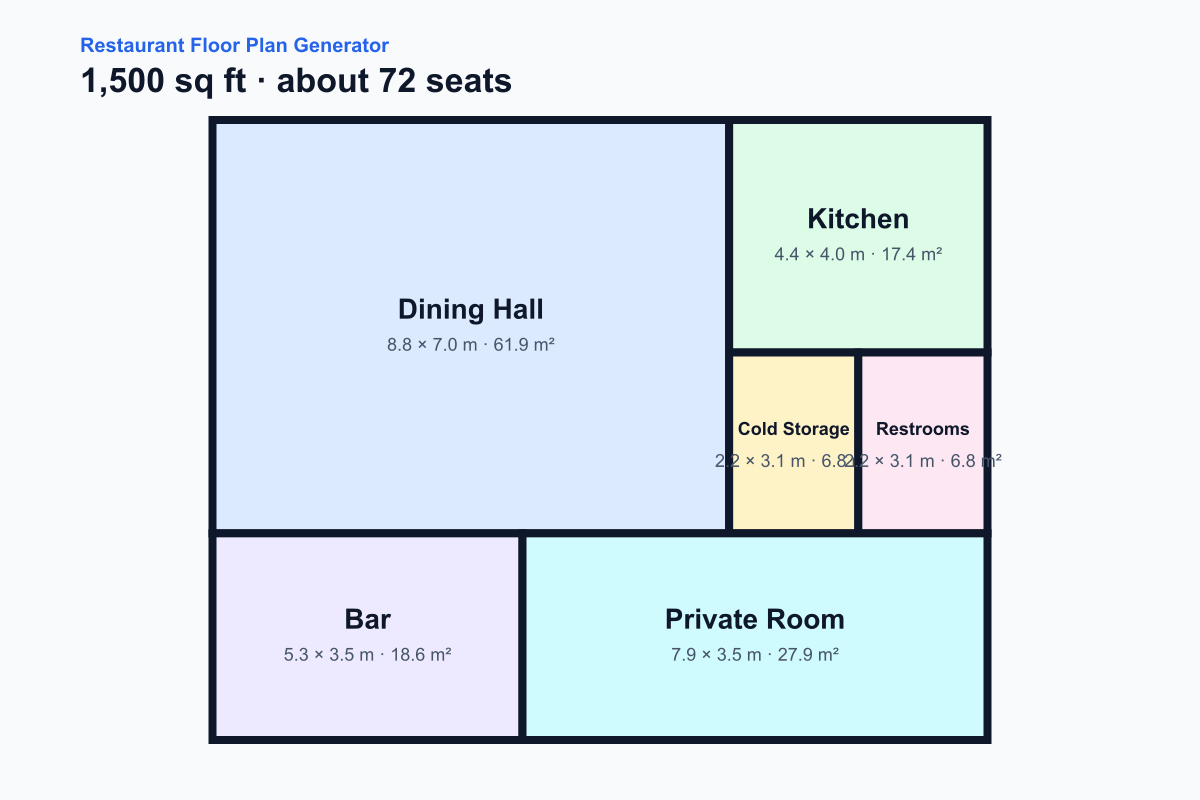

This example shows the sequence clearly: footprint first, then walls and openings, followed by room labels and dimensions. Commercial plans add another test because staff and guest routes must work at the same time. The restaurant floor plan generator provides an editable draft for comparing dining, kitchen, service, and support zones.
6. Label Rooms and Add Dimensions
Use familiar room names and keep labels centered where possible. Dimensions should answer practical questions without covering the drawing. Start with overall building dimensions, then add major room sizes, partition locations, and critical openings.
Do not duplicate every measurement. Too many dimension strings create noise and make contradictions more likely. A reader should be able to understand the footprint, locate partitions, and verify important clearances. Group related dimensions into consistent strings rather than scattering them across rooms.
For an early concept, room width, depth, and area may be enough. For measured existing conditions, include the dimensions needed to reconstruct the geometry. Always state whether dimensions are approximate or verified. The standard room sizes guide can help you spot a room that is implausibly small, but its ranges are planning references rather than code limits.
Check written measurement formats as carefully as geometry. In imperial units, 9 feet 12 inches must roll over to 10 feet 0 inches; leaving it as 9'12" makes a correct line look unreliable. In metric work, decide whether the project uses meters to two decimal places or millimeters as whole numbers. Mixing 3.60 m, 360 cm, and 3,600 mm on one plan invites errors.
7. Test Circulation, Doors, and Fit
A technically accurate outline can still describe a poor layout. Imagine entering through the main door and walking to every destination. Look for routes that cut through seating, cross a kitchen work zone, expose private rooms, or force people through narrow gaps.
Add simple blocks for beds, tables, desks, counters, and major equipment at realistic sizes. A bedroom needs more than space for a mattress; it needs approach space, door clearance, and storage access. A dining table needs room for chairs to pull out. In an office or shop, circulation and accessibility may control the arrangement more than the nominal room area.
Check every door in both its open and closed positions. Two doors may collide in a corridor. A bathroom door may block a fixture. A bedroom door can consume the only usable wall for a wardrobe. Moving an opening a few inches may solve more than enlarging the room.
Read the plan as a sequence of daily actions: arrive, store belongings, prepare food, work, clean, rest, and leave. The beginner's guide to reading floor plans provides another checklist for reviewing circulation and symbols.

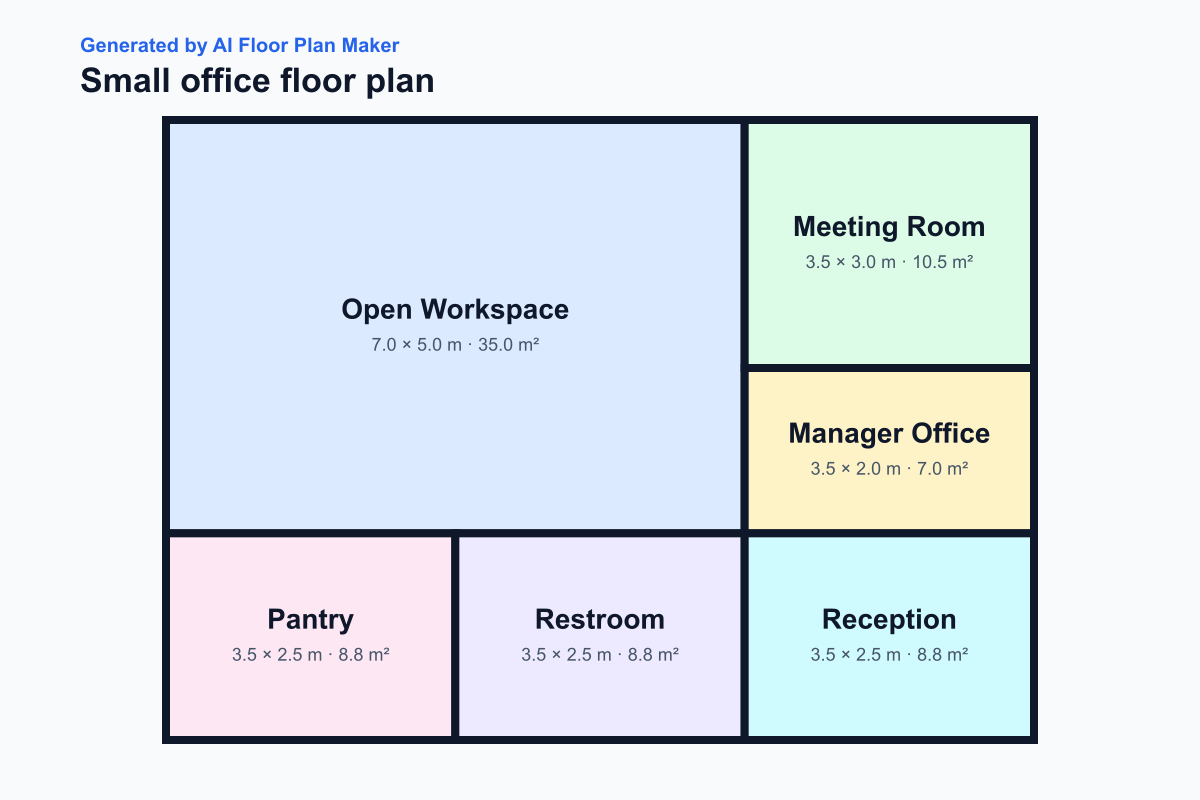

An office makes circulation problems easy to see. Desks may fit mathematically while chair movement blocks the route to a meeting room or restroom. Use the small office floor plan generator to compare workspace, meeting, reception, and support zones before committing to furniture or partitions.
8. Redraw Cleanly and Verify
Once the layout works, produce a clean version. Align walls, close accidental gaps, use consistent line weights, and remove construction marks. Add a title, scale, date, orientation if relevant, and a revision note. Then compare the finished plan against the source measurements one more time.
Check that room dimensions reconcile with the overall footprint after wall thickness is considered. Confirm every door and window. Compare key diagonals. If you edited a proposed layout, keep the original nearby so you understand which walls moved and what those changes affect.
Print or export a test copy at the intended size. Text that is readable while zoomed in may disappear on paper. Confirm that room names, dimensions, and door swings remain legible and that no annotation is clipped. Ask another person to describe the plan back to you; their confusion often reveals an unclear label or missing connection.
Common Mistakes When Drawing Floor Plans
Most weak floor plans fail because several small assumptions compound, not because someone cannot draw a line. These checks catch the errors that most often make a plan difficult to trust or use.
Treating every corner as square
A room can measure 10 by 12 feet and still be out of square. If one diagonal is 15 feet 7 inches and the other is 15 feet 10 inches, drawing a perfect rectangle hides a 3-inch discrepancy. Take diagonals in irregular rooms and flag uncertain corners instead of silently correcting them.
Ignoring wall thickness
Drawing partitions as zero-width lines inflates usable space. A finished interior partition often occupies several inches, while exterior assemblies can be thicker. Across several rooms, those inches add up. Show a consistent thickness and distinguish clear room dimensions from centerline dimensions.
Forgetting door and object clearance
A door symbol is incomplete without its swing. A 30-inch door can collide with a vanity even when both fit separately. A U.S. queen mattress is about 60 by 80 inches, but a usable bedroom also needs access around it. Behind a dining chair, about 36 inches can be a useful early fit check; allow more where people must pass and verify the requirement for the real project.
Mixing units or rounding too early
Converting each segment separately can create a footprint that no longer closes. Keep original measurements, calculate at full precision, and round only displayed values. A string of six walls rounded by half an inch each can introduce a 3-inch mismatch at the final corner.
Measuring openings without their locations
Writing “window: 4 feet” is not enough. Record the distance from a known corner to one edge, the opening width, and the remaining wall segment as a check. The same rule applies to doors, columns, and built-ins.
Adding detail before circulation works
Textures and symbols can make a poor layout look finished. First verify entrances, primary routes, room connections, and door conflicts. A residential hallway may be sketched at 36 inches as an early check, but accessibility and local rules can require different clearances. Treat planning numbers as prompts to verify, not universal guarantees.
Hand Drawing vs. Software vs. AI
Hand drawing is best when you are standing inside an existing space. A pencil accepts quick corrections, odd corners, field notes, ceiling changes, and reminders such as “verify column” without interrupting the measurement process. It is also the fastest way to test one idea in a conversation. Its weakness is revision: moving a wall can force you to redraw labels, dimensions, and nearby objects.
Conventional floor plan or CAD software is best when precision, layers, reusable details, and coordinated documents matter. It gives the operator direct control, but it has a learning curve and still depends on correct inputs. Software does not make an uncertain measurement reliable.
AI generation is useful before exact drafting, when you want plausible arrangements from a room program. Give it the total area, rooms, relationships, and constraints, then compare the alternatives. It can save time on early zoning and create a clear discussion draft, but it cannot inspect hidden structure, confirm site measurements, or replace project-specific code review.

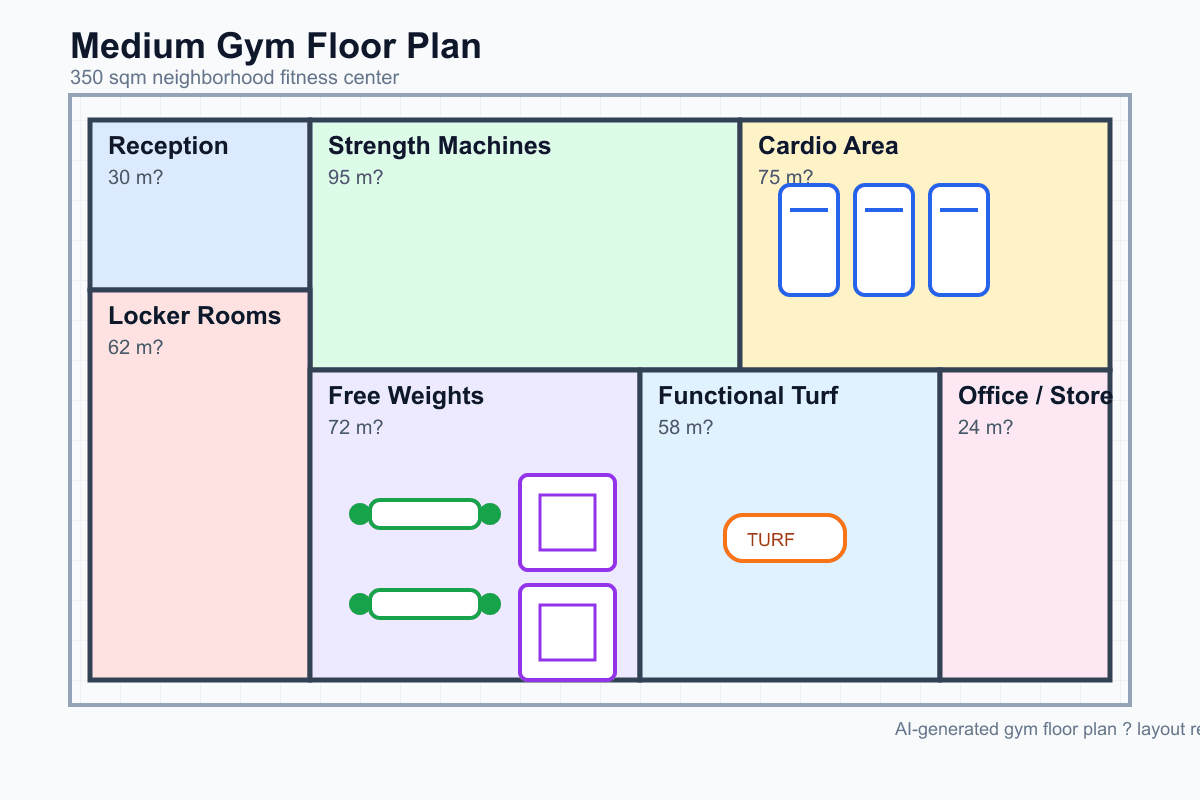

A plan with several activity zones, such as this gym, is a useful AI case because the first question is how much area each function receives. The gym floor plan generator creates a starting arrangement for cardio, strength, lockers, reception, and support spaces. You still need to confirm equipment clearances, structure, egress, accessibility, and applicable rules.
The strongest workflow combines all three approaches. Measure existing conditions by hand, use an AI or layout tool to compare concepts, and move the selected option into the level of drafting appropriate for the project. Browse the floor plan generators hub for purpose-specific starting points, or return to the free AI floor plan generator with your own description.
How to Turn a Paper Sketch Into a Digital Floor Plan
First, photograph or scan the sketch square-on in even light. Keep the paper flat and include the scale or one verified reference dimension. A photograph is only a visual reference; perspective can distort it, so do not trace blindly.
Second, recreate the outer footprint using real dimensions. Lock one reliable corner and work around the perimeter. Check the closing dimension and diagonals before adding interior partitions. This step turns the sketch from pixels into measurable geometry.
Third, add walls, openings, and labels in the same sequence used for the hand drawing. Compare each room against the field notes instead of judging by appearance. Use snapping where helpful, but override it when the measured building is genuinely irregular.
Fourth, run a reconciliation check. Compare overall width and depth, important diagonals, room dimensions, opening positions, and total area. If the digital plan does not close, find the uncertain source measurement instead of distributing the error invisibly.
Finally, preserve both files. Keep the dated field sketch or scan as the source record and save the editable digital plan separately. Export a review PNG or PDF, but do not throw away the geometry file. A flat export is useful for sharing; the editable version is what makes later corrections efficient.
Frequently Asked Questions
Can I learn to draw a basic floor plan without design experience?
Yes. Most beginners can learn the basic sequence—measure, scale, draw walls, add openings, label, and verify—in one focused session. Accuracy improves with practice because field measurement and error checking are separate skills. Start with one rectangular room, then add irregular corners and connected rooms after you can make the simple footprint close correctly.
How long does it take to draw a floor plan?
A simple room can take 20 to 40 minutes to measure and sketch. A small home may take several hours when you include openings, fixed elements, and verification. Redrawing digitally can be faster once measurements are organized. Complex or occupied buildings take longer because access, irregular geometry, and checking matter more than raw floor area.
What tools do I need for a hand-drawn floor plan?
Use graph paper, pencil, eraser, ruler, and a reliable tape or laser measure. A phone camera and clipboard help document existing conditions. An architect's scale is convenient but not essential if you define a clear graph-paper ratio. The most important tool is a consistent measurement method with enough cross-checks to catch omissions.
Should I draw a floor plan in feet or meters?
Use the unit system familiar to the project team and expected for the location. Feet and inches are common in U.S. residential work; meters or millimeters are common in many other places. Either works if it is consistent. Do not switch units inside one dimension chain, and label the unit clearly on every shared version.
Is hand drawing better than floor plan software?
Hand drawing is faster for site notes and early conversation. Software is better for clean revisions, repeated details, and coordinated dimensions. Many reliable workflows use both: measure and annotate by hand, then recreate the verified geometry digitally. The choice is not about artistic skill; it is about whether you are capturing information or refining it.
How do I convert a sketch into an editable electronic plan?
Scan or photograph the sketch, choose one verified reference dimension, and rebuild the footprint as actual walls rather than stretching the image. Add openings and rooms from the measurements, then compare totals and diagonals. Save the editable geometry file as well as the shareable PNG or PDF so future wall changes do not require starting again.
Can AI create a construction-ready floor plan?
No. AI can create and help edit a concept layout, but it cannot verify site conditions, structure, utilities, fire safety, accessibility, or local approval requirements. Use the result to compare arrangements and communicate a brief. A qualified local professional must review and develop any plan intended for permitting or construction.
What scale should I use for a floor plan?
Choose the largest scale that fits the complete footprint plus notes on the sheet. For homes, 1:50 or 1/4 inch equals 1 foot often provides readable detail; 1:100 or 1/8 inch equals 1 foot fits a larger area. Test the longest wall first, state the scale, and never change it midway through one plan.
Final Floor Plan Checklist
Before sharing the plan, confirm the footprint, wall locations, openings, scale, room names, main dimensions, door swings, and circulation. Make sure the file is labeled as a concept, measured plan, or construction document. Check that the scale and revision date are visible, and keep the original measurements with the digital file.
Continue with the floor plan symbols guide, compare spaces against the standard room sizes guide, or explore every category in the floor plan generators directory.
For layout reference only. AI-generated concepts and early drawings are not construction documents; have dimensions, structure, accessibility, fire safety, and local code requirements reviewed by qualified professionals before building.
