Gym Floor Plan Generator is a free AI planning tool that turns a plain-English fitness brief into editable floor-plan geometry with training zones, support rooms, walls, doors, dimensions, and room labels. Start without signup, adjust the layout in the browser, and export a PNG concept for equipment and professional design review.
A gym floor plan is really a zoning problem. Strength training, cardio, functional training, stretching, lockers, reception, and storage all compete for the same footprint, but they do not need the same kind of space. Equipment spacing affects safety, cleaning, circulation, noise, and how crowded the room feels at peak time. The front desk matters too: it should welcome new members, control entry, and maintain a clear view across the floor. A strong gym plan balances member experience with supervision, emergency access, and day-to-day operations.
Floor plan generator
Free: 5 successful AI generations/hour, 5/day · No login · Failed or fallback generations don't count · Free PNG includes a watermark
Your editable floor plan layout will appear here.
These examples show how a gym floor plan generator can turn a short brief into useful zones. The exact equipment list will change from one operator to another, but the planning questions stay similar: where members arrive, how they move from lockers to training, which areas need more clearance, and whether staff can supervise the room. Use the images as concept references, then refine the plan with measured equipment, local code checks, and professional review.

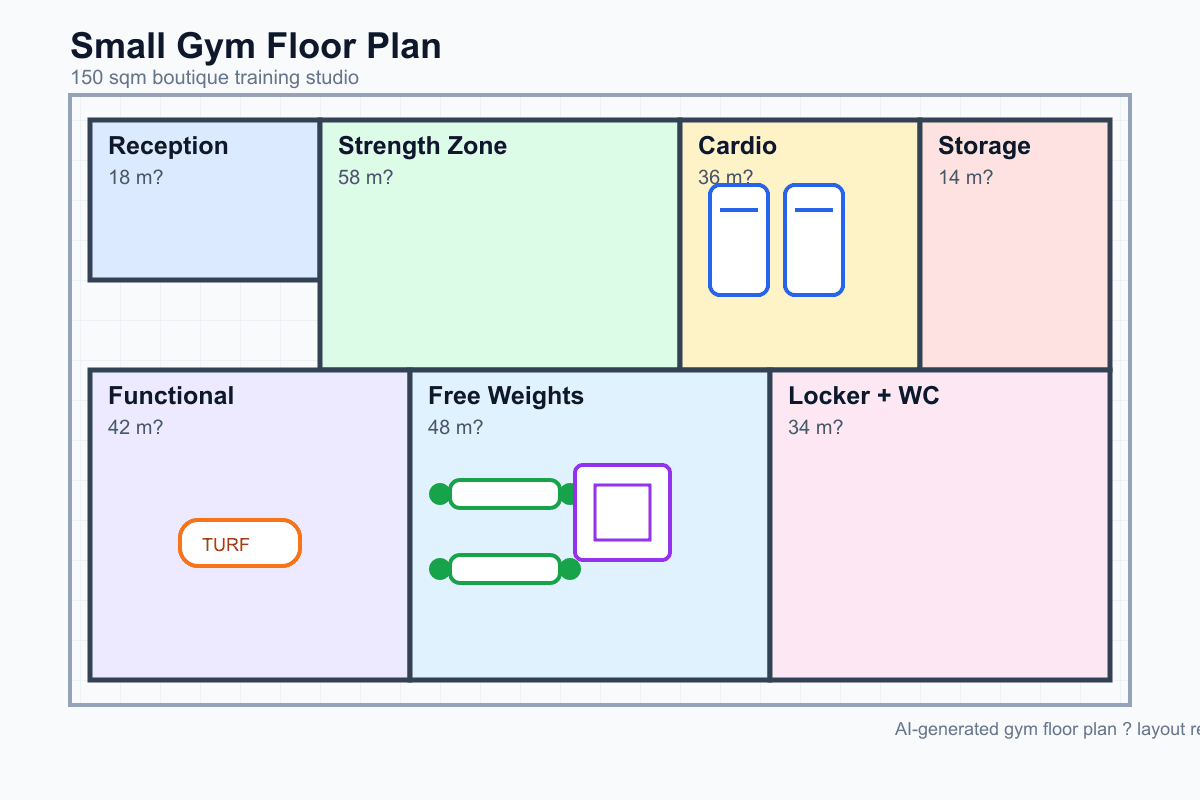

A compact gym study for a focused membership model. It gives priority to strength, cardio, and a small functional zone while keeping reception close to the entrance.
Source: deterministic gym specification exported by the current production renderer.

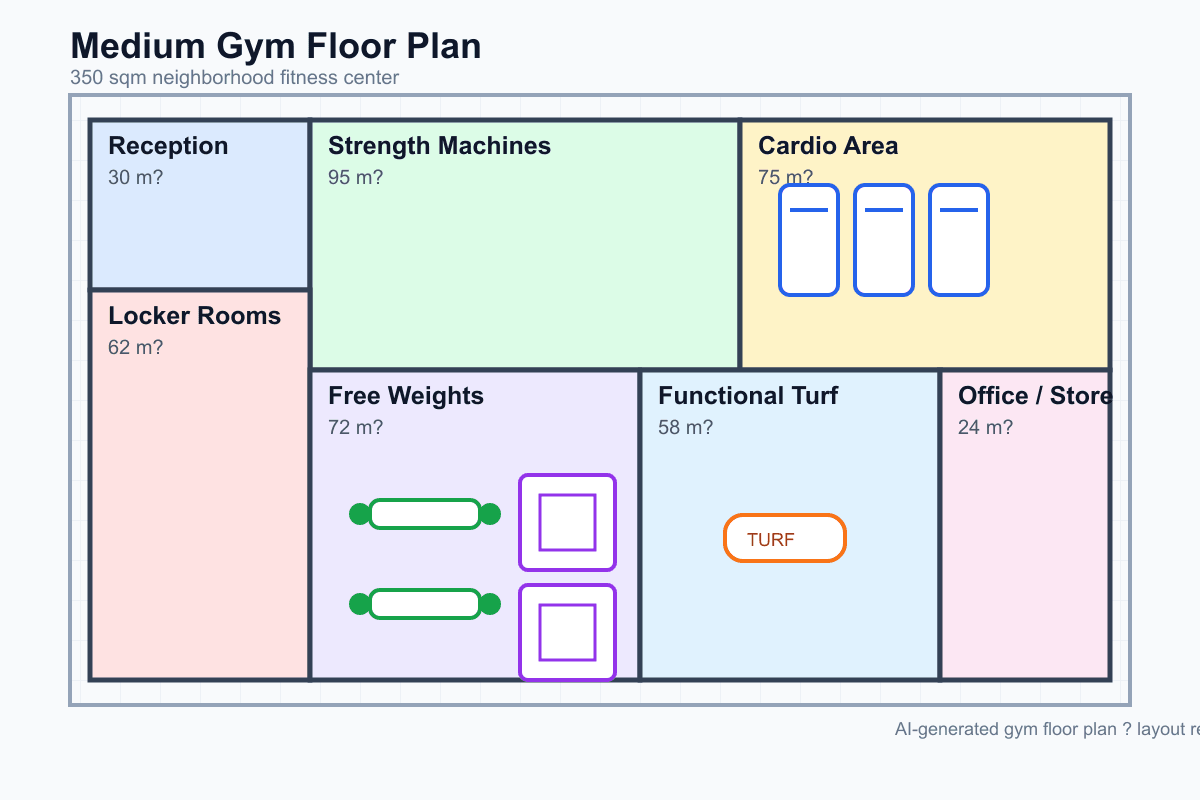

A balanced floor plan for daily training, with clearer separation between free weights, cardio, lockers, restrooms, reception, and storage.
Source: deterministic gym specification exported by the current production renderer.

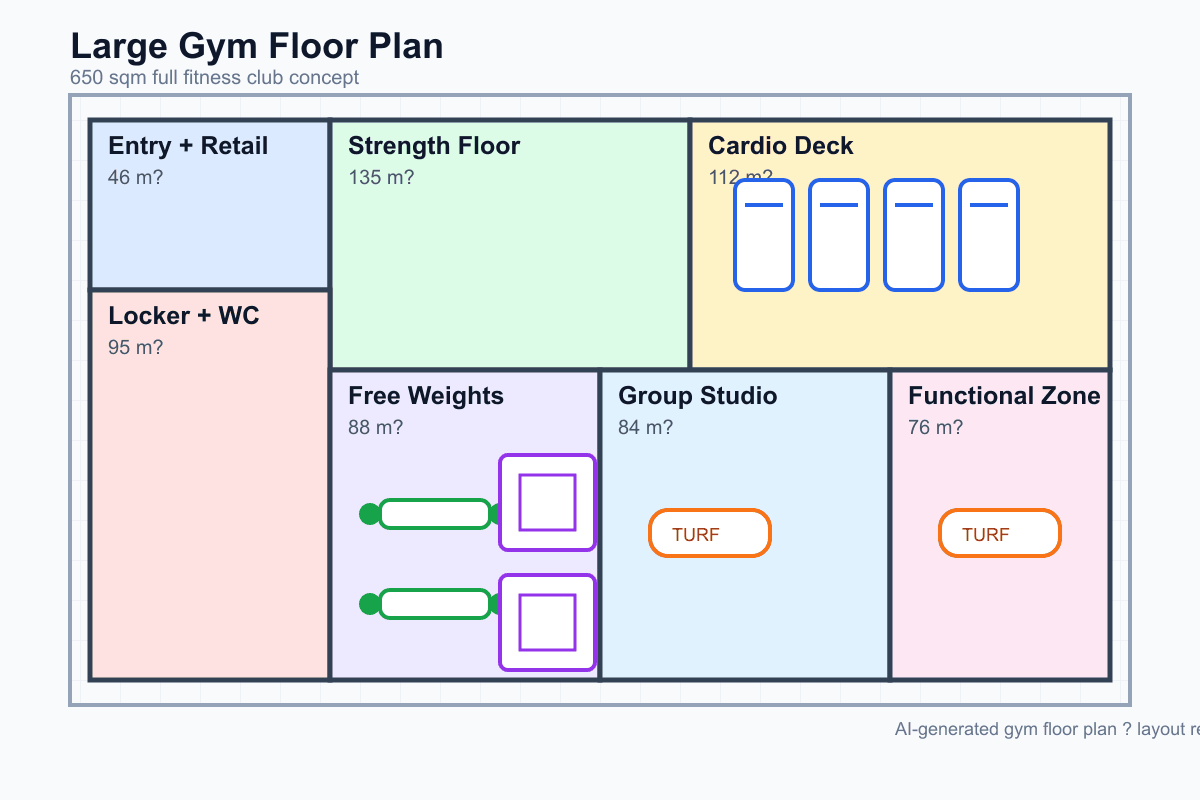

A larger club concept where sightlines, emergency routes, group training, circulation, and equipment spacing become more important than simply adding more machines.
Source: deterministic gym specification exported by the current production renderer.
Use these figures to test a brief before choosing exact equipment. They are early programming allowances rather than code-compliant room sizes. Machine footprints, manufacturer service clearances, occupancy, structure, acoustics, ventilation, fire egress, and accessibility can all increase the final area.
| Zone | Early area or spacing check | What the first layout should protect |
|---|---|---|
| Strength and free weights | About 50 sq ft (4.6 m²) per selectorized station; roughly 65 sq ft (6 m²) per free-weight station | Bench and rack use, plate loading, spotting, maintenance, impact flooring, and a route that does not cross lifting zones |
| Cardio | About 50 sq ft (4.6 m²) per machine before confirming the manufacturer's operating and dismount clearances | Safe approach and exit, cleaning access, power and data, staff sightlines, and clear space at accessible equipment |
| Group exercise studio | About 50 sq ft (4.6 m²) per participant for an early class capacity check | Instructor zone, movement envelope, equipment storage, door swings, acoustic separation, and an unobstructed exit |
| Locker and changing rooms | Start with 8 sq ft (0.74 m²) per full-height floor locker, then add about 50% for internal circulation before showers and toilets | Dry and wet movement, benches, privacy, accessible changing, plumbing walls, ventilation, and a route outside training areas |
| Reception and entry control | Size from peak arrivals rather than membership totals; keep at least a 36 in (915 mm) accessible route and a 60 in (1,525 mm) turning space where required | Check-in queue, gate swing, staff workspace, visitor waiting, and a direct view of the entrance and main training floor |
Reference basis: the WBDG fitness-center planning guidance and the U.S. Access Board accessible-route guidance. Local requirements and current manufacturer instructions control the final design.
For many gyms, 60-70% of the usable area goes to training zones: strength, cardio, free weights, stretching, and functional training. Reception, lockers, toilets, storage, staff, and circulation usually take the remaining 30-40%.
Plan at least 1 meter between treadmills where possible, with a clear route behind the machines for entry, exit, cleaning, and emergency access. Tighter spacing can feel efficient on paper but uncomfortable during peak hours.
Free-weight areas need more buffer than selectorized machines. Use roughly 3-4 square meters per active lifter as an early planning check, then increase clearance near benches, racks, mirrors, and dumbbell runs.
The front desk should sit at the entrance and see the main training floor, not hide behind a wall. Visibility helps staff greet members, control access, notice unsafe behavior, and guide new visitors quickly.
Locker rooms and restrooms should be close to the entrance or a side corridor, but their traffic should not cut through heavy lifting or functional training zones. Wet areas also need practical plumbing and ventilation planning.
Open training turf, mats, and stretching zones work best when they are not crossed by the main entry path. A clear rectangle is usually more useful than a leftover corner, especially for sled work, circuits, and classes.
Study exit routes, extinguisher points, and staff sightlines before adding more machines. Crowded rows can reduce perceived value and may create safety problems if escape paths or door clearances are compromised.
If you are still learning how to judge a plan, start with our beginner guide to reading floor plans and the standard room size guide. They help you check dimensions, circulation, and room relationships before you edit a generated gym layout. For a more focused brief, compare the home gym floor plan generator, yoga studio floor plan generator, or classroom floor plan generator when a coach-led room needs teaching-style sightlines and clear participant zones.
Enter the approximate area, training style, required zones, and support rooms. Mention strength, cardio, lockers, reception, storage, group class, turf, yoga, or recovery spaces when they matter.
Check whether free weights have enough clearance, cardio rows are not too tight, wet areas are separated, and reception can see the main training floor.
Drag walls to test proportions, open the 3D preview, and download a PNG for your next planning meeting. Mark anything that needs professional measurement or code review.
It works best for early layout previews from small boutique studios around 80-150 square meters to larger fitness centers above 500 square meters. Very large clubs with pools, saunas, multiple studios, medical areas, or complex code requirements should be refined by a professional design team.
Yes. Add those spaces to your prompt, such as “gym with pool, yoga studio, lockers, reception, and free weights.” The generator can draft the zones, but pool structure, wet-area waterproofing, ventilation, drainage, and safety requirements need specialist review.
Yes. After generation, you can review the editable plan, drag walls or corners, open the 3D preview, and download the current layout as a PNG for planning conversations.
No. Treat every output as a layout reference only. Equipment clearances, structural limits, fire exits, accessibility, ventilation, plumbing, electrical loads, and local building codes must be checked by qualified professionals.
Mention the approximate area, training style, required zones, locker rooms, reception, storage, and any special spaces such as cycling, yoga, functional training, recovery, childcare, or retail. The more specific the operating model, the more useful the first draft becomes.
As an early programming check, allow about 50 square feet (4.6 square meters) per cardio or selectorized-strength station and about 65 square feet (6 square meters) per free-weight station. These are planning allowances, not installation instructions: confirm every machine footprint, service zone, user clearance, and accessible route with the manufacturer and your design team.
Keep the main route continuous and easy to see. In the United States, an accessible route is generally at least 36 inches clear, and wheelchair turning spaces are typically 60 inches. Equipment, benches, open doors, and stored weights must not reduce the required route; local accessibility, occupancy, and fire rules still need professional verification.
